6. YOLOv8 追踪计数

6. YOLOv8 追踪计数#

Open In Colab

YOLOv8 是 Ultralytics 开发的 YOLO（You Only Look Once）目标检测和图像分割模型的最新版本。YOLOv8 模型设计为快速、准确且易于使用，使其成为广泛目标检测和图像分割任务的绝佳选择。它可以在大型数据集上进行训练，并且能够在从 CPU 到 GPU 的各种硬件平台上运行。

在本教程中，我们将介绍如何使用 YOLOv8 进行目标检测和图像分割，并展示如何使用 ByteTrack 进行目标追踪和计数。我们将使用 Roboflow 提供的预训练模型和数据集，以便您可以立即开始使用。

专业建议：使用 GPU 加速#

如果您在 Google Colab 中运行此笔记本，请导航到 编辑 -> 笔记本设置 -> 硬件加速器，将其设置为 GPU，然后单击 保存。这将确保您的笔记本使用 GPU，从而显著加快模型训练速度。

本教程的步骤#

在本教程中，我们将涵盖以下内容：

  • 开始之前

  • 下载视频

  • 安装 YOLOv8

  • 安装 ByteTrack

  • 安装 Roboflow Supervision

  • 跟踪工具

  • 加载预训练的 YOLOv8 模型

  • 预测并标注单帧图像

  • 预测并标注整个视频

让我们开始吧！

开始之前#

让我们确保我们可以访问 GPU。我们可以使用 nvidia-smi 命令来检查。如果遇到任何问题，请导航到 编辑 -> 笔记本设置 -> 硬件加速器，将其设置为 GPU，然后单击 保存。

!nvidia-smi

'nvidia-smi' 不是内部或外部命令，也不是可运行的程序
或批处理文件。

import os
HOME = os.getcwd()
print(HOME)

D:\3000-code\deeplearning\DeepLearning2023\Deeplearning\chapters\chpt2

下载视频#

%cd {HOME}
!wget --load-cookies /tmp/cookies.txt "https://docs.google.com/uc?export=download&confirm=$(wget --quiet --save-cookies /tmp/cookies.txt --keep-session-cookies --no-check-certificate 'https://docs.google.com/uc?export=download&id=1pz68D1Gsx80MoPg-_q-IbEdESEmyVLm-' -O- | sed -rn 's/.*confirm=([0-9A-Za-z_]+).*/\1\n/p')&id=1pz68D1Gsx80MoPg-_q-IbEdESEmyVLm-" -O vehicle-counting.mp4 && rm -rf /tmp/cookies.txt

D:\3000-code\deeplearning\DeepLearning2023\Deeplearning\chapters\chpt2

D:\Program Files\Python39\lib\site-packages\IPython\core\magics\osm.py:417: UserWarning: using dhist requires you to install the `pickleshare` library.
  self.shell.db['dhist'] = compress_dhist(dhist)[-100:]

'wget' 不是内部或外部命令，也不是可运行的程序
或批处理文件。

SOURCE_VIDEO_PATH = f"{HOME}/vehicle-counting.mp4"

安装 YOLOv8#

⚠️ YOLOv8 仍在积极开发中。几乎每周都会引入重大更改。我们努力使我们的 YOLOv8 笔记本与库的最新版本兼容。最后一次测试于 2023年1月23日 进行，使用的版本为 YOLOv8.0.17。

# Pip install method (recommended)

!pip install "ultralytics<=8.3.40"

from IPython import display
display.clear_output()

import ultralytics
ultralytics.checks()

---------------------------------------------------------------------------
ModuleNotFoundError                       Traceback (most recent call last)
Cell In[5], line 8
      5 from IPython import display
      6 display.clear_output()
----> 8 import ultralytics
      9 ultralytics.checks()

ModuleNotFoundError: No module named 'ultralytics'

安装 ByteTrack#

ByteTrack 是一个优秀的追踪器，但它的打包方式有些问题。我们需要克服一些困难才能使其与 YOLOv8 协同工作。

%cd {HOME}
!git clone https://github.com/ifzhang/ByteTrack.git
%cd {HOME}/ByteTrack

# workaround related to https://github.com/roboflow/notebooks/issues/80
!sed -i 's/onnx==1.8.1/onnx==1.9.0/g' requirements.txt

!pip3 install -q -r requirements.txt
!python3 setup.py -q develop
!pip install -q cython_bbox
!pip install -q onemetric
# workaround related to https://github.com/roboflow/notebooks/issues/112 and https://github.com/roboflow/notebooks/issues/106
!pip install -q loguru lap thop

from IPython import display
display.clear_output()


import sys
sys.path.append(f"{HOME}/ByteTrack")


import yolox
print("yolox.__version__:", yolox.__version__)

yolox.__version__: 0.1.0

from yolox.tracker.byte_tracker import BYTETracker, STrack
from onemetric.cv.utils.iou import box_iou_batch
from dataclasses import dataclass


@dataclass(frozen=True)
class BYTETrackerArgs:
    track_thresh: float = 0.25
    track_buffer: int = 30
    match_thresh: float = 0.8
    aspect_ratio_thresh: float = 3.0
    min_box_area: float = 1.0
    mot20: bool = False

安装 Roboflow Supervision#

!pip install supervision==0.1.0


from IPython import display
display.clear_output()


import supervision
print("supervision.__version__:", supervision.__version__)

supervision.__version__: 0.1.0

from supervision.draw.color import ColorPalette
from supervision.geometry.dataclasses import Point
from supervision.video.dataclasses import VideoInfo
from supervision.video.source import get_video_frames_generator
from supervision.video.sink import VideoSink
from supervision.notebook.utils import show_frame_in_notebook
from supervision.tools.detections import Detections, BoxAnnotator
from supervision.tools.line_counter import LineCounter, LineCounterAnnotator

跟踪工具#

不幸的是，我们必须手动将模型生成的边界框与追踪器创建的边界框进行匹配。

from typing import List

import numpy as np


# converts Detections into format that can be consumed by match_detections_with_tracks function
def detections2boxes(detections: Detections) -> np.ndarray:
    return np.hstack((
        detections.xyxy,
        detections.confidence[:, np.newaxis]
    ))


# converts List[STrack] into format that can be consumed by match_detections_with_tracks function
def tracks2boxes(tracks: List[STrack]) -> np.ndarray:
    return np.array([
        track.tlbr
        for track
        in tracks
    ], dtype=float)


# matches our bounding boxes with predictions
def match_detections_with_tracks(
    detections: Detections,
    tracks: List[STrack]
) -> Detections:
    if not np.any(detections.xyxy) or len(tracks) == 0:
        return np.empty((0,))

    tracks_boxes = tracks2boxes(tracks=tracks)
    iou = box_iou_batch(tracks_boxes, detections.xyxy)
    track2detection = np.argmax(iou, axis=1)

    tracker_ids = [None] * len(detections)

    for tracker_index, detection_index in enumerate(track2detection):
        if iou[tracker_index, detection_index] != 0:
            tracker_ids[detection_index] = tracks[tracker_index].track_id

    return tracker_ids

加载 pre-trained YOLOv8 模型#

# settings
MODEL = "yolov8x.pt"

from ultralytics import YOLO

model = YOLO(MODEL)
model.fuse()

Downloading https://github.com/ultralytics/assets/releases/download/v0.0.0/yolov8x.pt to yolov8x.pt...
100%|██████████| 131M/131M [00:00<00:00, 234MB/s]
YOLOv8x summary (fused): 268 layers, 68200608 parameters, 0 gradients

预测单帧图像#

# dict maping class_id to class_name
CLASS_NAMES_DICT = model.model.names
# class_ids of interest - car, motorcycle, bus and truck
CLASS_ID = [2, 3, 5, 7]

# create frame generator
generator = get_video_frames_generator(SOURCE_VIDEO_PATH)
# create instance of BoxAnnotator
box_annotator = BoxAnnotator(color=ColorPalette(), thickness=4, text_thickness=4, text_scale=2)
# acquire first video frame
iterator = iter(generator)
frame = next(iterator)
# model prediction on single frame and conversion to supervision Detections
results = model(frame)
detections = Detections(
    xyxy=results[0].boxes.xyxy.cpu().numpy(),
    confidence=results[0].boxes.conf.cpu().numpy(),
    class_id=results[0].boxes.cls.cpu().numpy().astype(int)
)
# format custom labels
labels = [
    f"{CLASS_NAMES_DICT[class_id]} {confidence:0.2f}"
    for _, confidence, class_id, tracker_id
    in detections
]
# annotate and display frame
frame = box_annotator.annotate(frame=frame, detections=detections, labels=labels)

%matplotlib inline
show_frame_in_notebook(frame, (16, 16))

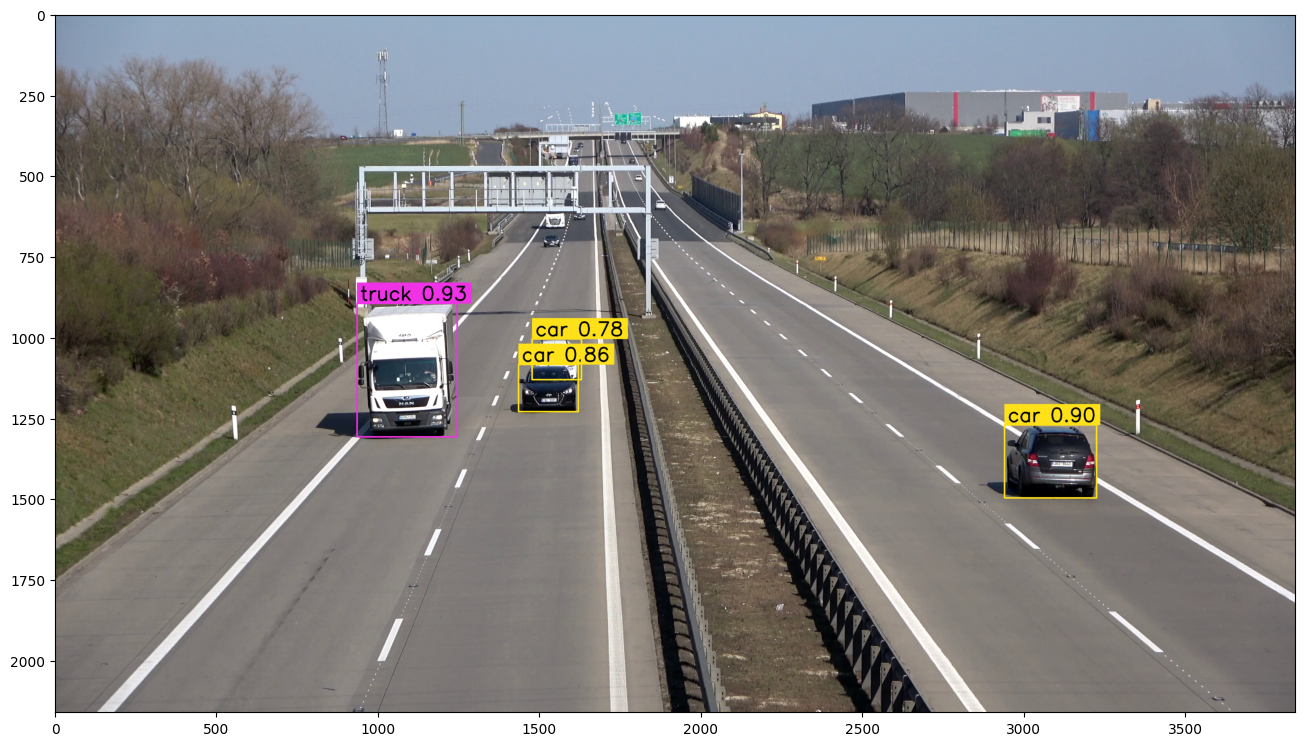

0: 384x640 3 cars, 1 truck, 66.5ms
Speed: 14.1ms preprocess, 66.5ms inference, 22.4ms postprocess per image at shape (1, 3, 640, 640)
../../_images/0bcf3e15509bded5be49074da3aeb8e9c0b1ec5fded07ea94ed1421a840fc07b.png

预测标注整个视频#

# settings
LINE_START = Point(50, 1500)
LINE_END = Point(3840-50, 1500)

TARGET_VIDEO_PATH = f"{HOME}/vehicle-counting-result.mp4"

VideoInfo.from_video_path(SOURCE_VIDEO_PATH)

VideoInfo(width=3840, height=2160, fps=25, total_frames=538)

import numpy as np

# 添加 np.float 属性
if not hasattr(np, 'float'):
    np.float = float

# 然后运行你的代码

from tqdm.notebook import tqdm


# create BYTETracker instance
byte_tracker = BYTETracker(BYTETrackerArgs())
# create VideoInfo instance
video_info = VideoInfo.from_video_path(SOURCE_VIDEO_PATH)
# create frame generator
generator = get_video_frames_generator(SOURCE_VIDEO_PATH)
# create LineCounter instance
line_counter = LineCounter(start=LINE_START, end=LINE_END)
# create instance of BoxAnnotator and LineCounterAnnotator
box_annotator = BoxAnnotator(color=ColorPalette(), thickness=4, text_thickness=4, text_scale=2)
line_annotator = LineCounterAnnotator(thickness=4, text_thickness=4, text_scale=2)

# open target video file
with VideoSink(TARGET_VIDEO_PATH, video_info) as sink:
    # loop over video frames
    for frame in tqdm(generator, total=video_info.total_frames):
        # model prediction on single frame and conversion to supervision Detections
        results = model(frame)
        detections = Detections(
            xyxy=results[0].boxes.xyxy.cpu().numpy(),
            confidence=results[0].boxes.conf.cpu().numpy(),
            class_id=results[0].boxes.cls.cpu().numpy().astype(int)
        )
        # filtering out detections with unwanted classes
        mask = np.array([class_id in CLASS_ID for class_id in detections.class_id], dtype=bool)
        detections.filter(mask=mask, inplace=True)
        # tracking detections
        tracks = byte_tracker.update(
            output_results=detections2boxes(detections=detections),
            img_info=frame.shape,
            img_size=frame.shape
        )
        tracker_id = match_detections_with_tracks(detections=detections, tracks=tracks)
        detections.tracker_id = np.array(tracker_id)
        # filtering out detections without trackers
        mask = np.array([tracker_id is not None for tracker_id in detections.tracker_id], dtype=bool)
        detections.filter(mask=mask, inplace=True)
        # format custom labels
        labels = [
            f"#{tracker_id} {CLASS_NAMES_DICT[class_id]} {confidence:0.2f}"
            for _, confidence, class_id, tracker_id
            in detections
        ]
        # updating line counter
        line_counter.update(detections=detections)
        # annotate and display frame
        frame = box_annotator.annotate(frame=frame, detections=detections, labels=labels)
        line_annotator.annotate(frame=frame, line_counter=line_counter)
        sink.write_frame(frame)

展示前面保存的视频#

在视频处理完成后添加以下代码#

from IPython.display import Video

展示生成的视频#

Video(TARGET_VIDEO_PATH, embed=True)
