5. Faster R-CNN#
在第4章中，我们使用了One-Stage Detector模型RetinaNet来构建了一个医疗口罩检测模型。在本章中，我们将使用Two-Stage Detector模型Faster R-CNN来进行对象检测。
从5.1节到5.3节，我们将基于第2章和第3章中所学到的内容，加载数据并将其划分为训练集和测试集，然后定义数据集类。在5.4节中，我们将使用torchvision API来加载预训练模型。在5.5节中，我们将通过迁移学习来训练模型，并在5.6节中计算预测值并评估模型性能。
在进行实验之前，由于Google Colab会随机分配GPU，因此可能会出现内存不足的情况。
首先，请检查GPU是否有足够的内存，如果有足够的内存，建议进行实验。如果运行时被初始化，您将能够获得一个新的GPU。
import torch
if torch.cuda.is_available():
device = torch.device("cuda")
print('There are %d GPU(s) available.' % torch.cuda.device_count())
print('We will use the GPU:', torch.cuda.get_device_name(0))
else:
print('No GPU available, using the CPU instead.')
device = torch.device("cpu")
No GPU available, using the CPU instead.
5.1 加载数据#
为了进行建模实验，我们将使用2.1节中的代码来加载数据。以下是从假研究室GitHub的Tutorial-Book-Utils中的PL_data_loader.py文件下载FascMaskDetection数据集并解压缩文件的顺
!git clone https://github.com/Pseudo-Lab/Tutorial-Book-Utils
!python Tutorial-Book-Utils/PL_data_loader.py --data FaceMaskDetection
!unzip -q Face\ Mask\ Detection.zip
'git' 不是内部或外部命令，也不是可运行的程序
或批处理文件。
python: can't open file 'D:\3000-code\deeplearning\DeepLearning2023\Deeplearning\chapters\chpt2\Tutorial-Book-Utils\PL_data_loader.py': [Errno 2] No such file or directory
'unzip' 不是内部或外部命令，也不是可运行的程序
或批处理文件。
5.2 数据分离#
正如在3.3节中一样，让我们尝试分离数据集。通过下面的代码，随机提取170张图像并将它们移动到测试文件夹中
import os
import random
import numpy as np
import shutil
print(len(os.listdir('annotations')))
print(len(os.listdir('images')))
!mkdir test_images
!mkdir test_annotations
random.seed(1234)
idx = random.sample(range(853), 170)
for img in np.array(sorted(os.listdir('images')))[idx]:
shutil.move('images/'+img, 'test_images/'+img)
for annot in np.array(sorted(os.listdir('annotations')))[idx]:
shutil.move('annotations/'+annot, 'test_annotations/'+annot)
print(len(os.listdir('annotations')))
print(len(os.listdir('images')))
print(len(os.listdir('test_annotations')))
print(len(os.listdir('test_images')))
---------------------------------------------------------------------------
FileNotFoundError Traceback (most recent call last)
Cell In[3], line 6
3 import numpy as np
4 import shutil
----> 6 print(len(os.listdir('annotations')))
7 print(len(os.listdir('images')))
9 get_ipython().system('mkdir test_images')
FileNotFoundError: [WinError 3] 系统找不到指定的路径。: 'annotations'
此外，还将导入建模所需的包。torchvision用于图像处理，内置了有关数据集和模型的包。
import os
import numpy as np
import matplotlib.patches as patches
import matplotlib.pyplot as plt
from bs4 import BeautifulSoup
from PIL import Image
import torchvision
from torchvision import transforms, datasets, models
from torchvision.models.detection.faster_rcnn import FastRCNNPredictor
import time
5.3 数据集类定义#
这次，就像在2.3节中一样，我们将为边界框定义函数。
def generate_box(obj):
xmin = float(obj.find('xmin').text)
ymin = float(obj.find('ymin').text)
xmax = float(obj.find('xmax').text)
ymax = float(obj.find('ymax').text)
return [xmin, ymin, xmax, ymax]
adjust_label = 1
def generate_label(obj):
if obj.find('name').text == "with_mask":
return 1 + adjust_label
elif obj.find('name').text == "mask_weared_incorrect":
return 2 + adjust_label
return 0 + adjust_label
def generate_target(file):
with open(file) as f:
data = f.read()
soup = BeautifulSoup(data, "html.parser")
objects = soup.find_all("object")
num_objs = len(objects)
boxes = []
labels = []
for i in objects:
boxes.append(generate_box(i))
labels.append(generate_label(i))
boxes = torch.as_tensor(boxes, dtype=torch.float32)
labels = torch.as_tensor(labels, dtype=torch.int64)
target = {}
target["boxes"] = boxes
target["labels"] = labels
return target

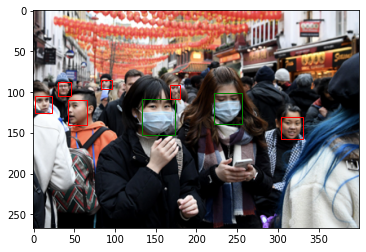

def plot_image_from_output(img, annotation):
img = img.cpu().permute(1,2,0)
fig,ax = plt.subplots(1)
ax.imshow(img)
for idx in range(len(annotation["boxes"])):
xmin, ymin, xmax, ymax = annotation["boxes"][idx]
if annotation['labels'][idx] == 1 :
rect = patches.Rectangle((xmin,ymin),(xmax-xmin),(ymax-ymin),linewidth=1,edgecolor='r',facecolor='none')
elif annotation['labels'][idx] == 2 :
rect = patches.Rectangle((xmin,ymin),(xmax-xmin),(ymax-ymin),linewidth=1,edgecolor='g',facecolor='none')
else :
rect = patches.Rectangle((xmin,ymin),(xmax-xmin),(ymax-ymin),linewidth=1,edgecolor='orange',facecolor='none')
ax.add_patch(rect)
plt.show()
此外，像在4.3节中一样，我们将定义数据集类和数据加载器。数据集将通过torch.utils.data.DataLoader函数加载，批处理大小设置为4。批处理大小可以根据个人内存大小自由设置。
class MaskDataset(object):
def __init__(self, transforms, path):
'''
path: path to train folder or test folder
'''
self.transforms = transforms
self.path = path
self.imgs = list(sorted(os.listdir(self.path)))
def __getitem__(self, idx): #special method
# load images ad masks
file_image = self.imgs[idx]
file_label = self.imgs[idx][:-3] + 'xml'
img_path = os.path.join(self.path, file_image)
if 'test' in self.path:
label_path = os.path.join("test_annotations/", file_label)
else:
label_path = os.path.join("annotations/", file_label)
img = Image.open(img_path).convert("RGB")
#Generate Label
target = generate_target(label_path)
if self.transforms is not None:
img = self.transforms(img)
return img, target
def __len__(self):
return len(self.imgs)
data_transform = transforms.Compose([ # transforms.Compose : 能够连续调用列表内的操作的类
transforms.ToTensor() # ToTensor : 将numpy图像转换为torch图像
])
def collate_fn(batch):
return tuple(zip(*batch))
dataset = MaskDataset(data_transform, 'images/')
test_dataset = MaskDataset(data_transform, 'test_images/')
data_loader = torch.utils.data.DataLoader(dataset, batch_size=4, collate_fn=collate_fn)
test_data_loader = torch.utils.data.DataLoader(test_dataset, batch_size=2, collate_fn=collate_fn)
5.4 加载模型#
在 torchvision.models.detection 中，提供了 Faster R-CNN API (torchvision.models.detection.fasterrcnn_resnet50_fpn)，因此可以轻松实现。它提供了使用 ResNet50 在 COCO 数据集上预训练的模型，可以通过 pretrained=True/False 进行设置。
之后加载模型时，只需在 num_classes 中设置所需的类数量，然后使用模型即可。使用 Faster R-CNN 时需要注意的是，必须在 num_classes 中指定包括背景类在内的数量。也就是说，必须在实际数据集的类数量上增加1个来添加背景类。
def get_model_instance_segmentation(num_classes):
model = torchvision.models.detection.fasterrcnn_resnet50_fpn(pretrained=True)
in_features = model.roi_heads.box_predictor.cls_score.in_features
model.roi_heads.box_predictor = FastRCNNPredictor(in_features, num_classes)
return model
5.5 迁移学习#
我们将对口罩检测进行迁移学习。口罩检测数据集由3个类组成，但在包含背景类后，将num_classes设置为4，然后加载模型。
如果环境支持使用GPU，则将其指定为设备，并将加载的模型发送到GPU。
model = get_model_instance_segmentation(4)
device = torch.device('cuda') if torch.cuda.is_available() else torch.device('cpu')
model.to(device)
FasterRCNN(
(transform): GeneralizedRCNNTransform(
Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])
Resize(min_size=(800,), max_size=1333, mode='bilinear')
)
(backbone): BackboneWithFPN(
(body): IntermediateLayerGetter(
(conv1): Conv2d(3, 64, kernel_size=(7, 7), stride=(2, 2), padding=(3, 3), bias=False)
(bn1): FrozenBatchNorm2d(64)
(relu): ReLU(inplace=True)
(maxpool): MaxPool2d(kernel_size=3, stride=2, padding=1, dilation=1, ceil_mode=False)
(layer1): Sequential(
(0): Bottleneck(
(conv1): Conv2d(64, 64, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn1): FrozenBatchNorm2d(64)
(conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): FrozenBatchNorm2d(64)
(conv3): Conv2d(64, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn3): FrozenBatchNorm2d(256)
(relu): ReLU(inplace=True)
(downsample): Sequential(
(0): Conv2d(64, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
(1): FrozenBatchNorm2d(256)
)
)
(1): Bottleneck(
(conv1): Conv2d(256, 64, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn1): FrozenBatchNorm2d(64)
(conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): FrozenBatchNorm2d(64)
(conv3): Conv2d(64, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn3): FrozenBatchNorm2d(256)
(relu): ReLU(inplace=True)
)
(2): Bottleneck(
(conv1): Conv2d(256, 64, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn1): FrozenBatchNorm2d(64)
(conv2): Conv2d(64, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): FrozenBatchNorm2d(64)
(conv3): Conv2d(64, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn3): FrozenBatchNorm2d(256)
(relu): ReLU(inplace=True)
)
)
(layer2): Sequential(
(0): Bottleneck(
(conv1): Conv2d(256, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn1): FrozenBatchNorm2d(128)
(conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
(bn2): FrozenBatchNorm2d(128)
(conv3): Conv2d(128, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn3): FrozenBatchNorm2d(512)
(relu): ReLU(inplace=True)
(downsample): Sequential(
(0): Conv2d(256, 512, kernel_size=(1, 1), stride=(2, 2), bias=False)
(1): FrozenBatchNorm2d(512)
)
)
(1): Bottleneck(
(conv1): Conv2d(512, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn1): FrozenBatchNorm2d(128)
(conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): FrozenBatchNorm2d(128)
(conv3): Conv2d(128, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn3): FrozenBatchNorm2d(512)
(relu): ReLU(inplace=True)
)
(2): Bottleneck(
(conv1): Conv2d(512, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn1): FrozenBatchNorm2d(128)
(conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): FrozenBatchNorm2d(128)
(conv3): Conv2d(128, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn3): FrozenBatchNorm2d(512)
(relu): ReLU(inplace=True)
)
(3): Bottleneck(
(conv1): Conv2d(512, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn1): FrozenBatchNorm2d(128)
(conv2): Conv2d(128, 128, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): FrozenBatchNorm2d(128)
(conv3): Conv2d(128, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn3): FrozenBatchNorm2d(512)
(relu): ReLU(inplace=True)
)
)
(layer3): Sequential(
(0): Bottleneck(
(conv1): Conv2d(512, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn1): FrozenBatchNorm2d(256)
(conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
(bn2): FrozenBatchNorm2d(256)
(conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn3): FrozenBatchNorm2d(1024)
(relu): ReLU(inplace=True)
(downsample): Sequential(
(0): Conv2d(512, 1024, kernel_size=(1, 1), stride=(2, 2), bias=False)
(1): FrozenBatchNorm2d(1024)
)
)
(1): Bottleneck(
(conv1): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn1): FrozenBatchNorm2d(256)
(conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): FrozenBatchNorm2d(256)
(conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn3): FrozenBatchNorm2d(1024)
(relu): ReLU(inplace=True)
)
(2): Bottleneck(
(conv1): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn1): FrozenBatchNorm2d(256)
(conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): FrozenBatchNorm2d(256)
(conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn3): FrozenBatchNorm2d(1024)
(relu): ReLU(inplace=True)
)
(3): Bottleneck(
(conv1): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn1): FrozenBatchNorm2d(256)
(conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): FrozenBatchNorm2d(256)
(conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn3): FrozenBatchNorm2d(1024)
(relu): ReLU(inplace=True)
)
(4): Bottleneck(
(conv1): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn1): FrozenBatchNorm2d(256)
(conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): FrozenBatchNorm2d(256)
(conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn3): FrozenBatchNorm2d(1024)
(relu): ReLU(inplace=True)
)
(5): Bottleneck(
(conv1): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn1): FrozenBatchNorm2d(256)
(conv2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): FrozenBatchNorm2d(256)
(conv3): Conv2d(256, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn3): FrozenBatchNorm2d(1024)
(relu): ReLU(inplace=True)
)
)
(layer4): Sequential(
(0): Bottleneck(
(conv1): Conv2d(1024, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn1): FrozenBatchNorm2d(512)
(conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
(bn2): FrozenBatchNorm2d(512)
(conv3): Conv2d(512, 2048, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn3): FrozenBatchNorm2d(2048)
(relu): ReLU(inplace=True)
(downsample): Sequential(
(0): Conv2d(1024, 2048, kernel_size=(1, 1), stride=(2, 2), bias=False)
(1): FrozenBatchNorm2d(2048)
)
)
(1): Bottleneck(
(conv1): Conv2d(2048, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn1): FrozenBatchNorm2d(512)
(conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): FrozenBatchNorm2d(512)
(conv3): Conv2d(512, 2048, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn3): FrozenBatchNorm2d(2048)
(relu): ReLU(inplace=True)
)
(2): Bottleneck(
(conv1): Conv2d(2048, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn1): FrozenBatchNorm2d(512)
(conv2): Conv2d(512, 512, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), bias=False)
(bn2): FrozenBatchNorm2d(512)
(conv3): Conv2d(512, 2048, kernel_size=(1, 1), stride=(1, 1), bias=False)
(bn3): FrozenBatchNorm2d(2048)
(relu): ReLU(inplace=True)
)
)
)
(fpn): FeaturePyramidNetwork(
(inner_blocks): ModuleList(
(0): Conv2d(256, 256, kernel_size=(1, 1), stride=(1, 1))
(1): Conv2d(512, 256, kernel_size=(1, 1), stride=(1, 1))
(2): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1))
(3): Conv2d(2048, 256, kernel_size=(1, 1), stride=(1, 1))
)
(layer_blocks): ModuleList(
(0): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(1): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(2): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(3): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
)
(extra_blocks): LastLevelMaxPool()
)
)
(rpn): RegionProposalNetwork(
(anchor_generator): AnchorGenerator()
(head): RPNHead(
(conv): Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(cls_logits): Conv2d(256, 3, kernel_size=(1, 1), stride=(1, 1))
(bbox_pred): Conv2d(256, 12, kernel_size=(1, 1), stride=(1, 1))
)
)
(roi_heads): RoIHeads(
(box_roi_pool): MultiScaleRoIAlign()
(box_head): TwoMLPHead(
(fc6): Linear(in_features=12544, out_features=1024, bias=True)
(fc7): Linear(in_features=1024, out_features=1024, bias=True)
)
(box_predictor): FastRCNNPredictor(
(cls_score): Linear(in_features=1024, out_features=4, bias=True)
(bbox_pred): Linear(in_features=1024, out_features=16, bias=True)
)
)
)
通过上述输出结果，可以了解到Faster R-CNN是由哪些层组成的。此时，GPU的可用性可以通过torch.cuda.is_available()来确定
torch.cuda.is_available()
True
现在模型已经创建好了，让我们开始训练吧。训练次数（num_epochs）设置为10，我们将使用SGD方法进行优化。每个超参数都可以自由修改并使用。
num_epochs = 10
params = [p for p in model.parameters() if p.requires_grad]
optimizer = torch.optim.SGD(params, lr=0.005,
momentum=0.9, weight_decay=0.0005)
现在我们将开始训练。我们将依次使用上面创建的数据加载器中的每个批次，并通过计算损失来执行优化。通过每个epoch输出的损失，我们可以确认训练正在进行。
print('----------------------train start--------------------------')
for epoch in range(num_epochs):
start = time.time()
model.train()
i = 0
epoch_loss = 0
for imgs, annotations in data_loader:
i += 1
imgs = list(img.to(device) for img in imgs)
annotations = [{k: v.to(device) for k, v in t.items()} for t in annotations]
loss_dict = model(imgs, annotations)
losses = sum(loss for loss in loss_dict.values())
optimizer.zero_grad()
losses.backward()
optimizer.step()
epoch_loss += losses
print(f'epoch : {epoch+1}, Loss : {epoch_loss}, time : {time.time() - start}')
----------------------train start--------------------------
epoch : 1, Loss : 77.14759063720703, time : 252.42370867729187
epoch : 2, Loss : 48.91315460205078, time : 263.22984743118286
epoch : 3, Loss : 43.18947982788086, time : 264.4591932296753
epoch : 4, Loss : 36.07373046875, time : 265.2568733692169
epoch : 5, Loss : 31.8864688873291, time : 265.57766008377075
epoch : 6, Loss : 31.76308250427246, time : 265.0076003074646
epoch : 7, Loss : 31.24744415283203, time : 265.16882514953613
epoch : 8, Loss : 29.340274810791016, time : 265.73448038101196
epoch : 9, Loss : 25.922008514404297, time : 267.91367626190186
epoch : 10, Loss : 23.59230613708496, time : 266.9004054069519
如果你想保存训练好的权重，可以使用torch.save进行保存，以后随时都可以加载使用。
torch.save(model.state_dict(),f'model_{num_epochs}.pt')
model.load_state_dict(torch.load(f'model_{num_epochs}.pt'))
<All keys matched successfully>
5.6 预测#
既然模型训练已经完成，让我们来检查一下预测结果，看看模型是否训练得很好。预测结果将包括边界框的坐标（boxes）、类别（labels）和分数（scores）。分数（scores）将存储每个类别的置信度值，我们将定义一个函数make_prediction，只提取阈值为0.5或更高的结果。我们将只输出测试数据加载器的第一个批次的结果。
def make_prediction(model, img, threshold):
model.eval()
preds = model(img)
for id in range(len(preds)) :
idx_list = []
for idx, score in enumerate(preds[id]['scores']) :
if score > threshold :
idx_list.append(idx)
preds[id]['boxes'] = preds[id]['boxes'][idx_list]
preds[id]['labels'] = preds[id]['labels'][idx_list]
preds[id]['scores'] = preds[id]['scores'][idx_list]
return preds
with torch.no_grad():
for imgs, annotations in test_data_loader:
imgs = list(img.to(device) for img in imgs)
pred = make_prediction(model, imgs, 0.5)
print(pred)
break
[{'boxes': tensor([[117.7811, 1.4936, 132.9596, 18.4192],
[214.8204, 59.8669, 249.7893, 97.6275]], device='cuda:0'), 'labels': tensor([2, 2], device='cuda:0'), 'scores': tensor([0.9430, 0.9414], device='cuda:0')}, {'boxes': tensor([[218.8598, 99.3362, 260.0332, 138.8516],
[130.5172, 109.1189, 179.2908, 152.5566],
[ 29.2499, 88.7732, 45.5664, 104.5635],
[ 40.9168, 109.1093, 67.3653, 140.0567],
[165.5889, 90.0294, 179.4471, 109.1606],
[ 83.7276, 84.3918, 94.5928, 96.4693],
[302.4648, 130.4534, 332.0580, 158.8674],
[258.4624, 90.7134, 269.2498, 102.2883],
[ 2.8419, 103.6409, 21.9580, 125.5492]], device='cuda:0'), 'labels': tensor([2, 2, 1, 1, 1, 1, 1, 1, 1], device='cuda:0'), 'scores': tensor([0.9962, 0.9918, 0.9900, 0.9894, 0.9891, 0.9653, 0.9652, 0.9573, 0.9046],
device='cuda:0')}]
利用预测结果，我们将在图像上绘制边界框。使用上面定义的plot_image_from_output函数输出图像。Target是实际边界框的位置，Prediction是模型的预测结果。可以确认模型很好地找到了实际边界框的位置。
_idx = 1
print("Target : ", annotations[_idx]['labels'])
plot_image_from_output(imgs[_idx], annotations[_idx])
print("Prediction : ", pred[_idx]['labels'])
plot_image_from_output(imgs[_idx], pred[_idx])
Target : tensor([1, 1, 1, 2, 2, 1, 1, 1])
Prediction : tensor([2, 2, 1, 1, 1, 1, 1, 1, 1], device='cuda:0')
这次我们将评估整个测试数据的预测结果。首先，将所有测试数据的预测结果和实际标签分别存储在preds_adj_all和annot_all中。
from tqdm import tqdm
labels = []
preds_adj_all = []
annot_all = []
for im, annot in tqdm(test_data_loader, position = 0, leave = True):
im = list(img.to(device) for img in im)
#annot = [{k: v.to(device) for k, v in t.items()} for t in annot]
for t in annot:
labels += t['labels']
with torch.no_grad():
preds_adj = make_prediction(model, im, 0.5)
preds_adj = [{k: v.to(torch.device('cpu')) for k, v in t.items()} for t in preds_adj]
preds_adj_all.append(preds_adj)
annot_all.append(annot)
100%|██████████| 85/85 [00:25<00:00, 3.34it/s]
并且通过Tutorial-Book-Utils文件夹中的utils_ObjectDetection.py文件计算mAP值。通过get_batch_statistics函数计算满足IoU（交并比）条件的边界框之间的统计值，然后通过ap_per_class函数计算每个类别的AP值。
%cd Tutorial-Book-Utils/
import utils_ObjectDetection as utils
/content/Tutorial-Book-Utils
sample_metrics = []
for batch_i in range(len(preds_adj_all)):
sample_metrics += utils.get_batch_statistics(preds_adj_all[batch_i], annot_all[batch_i], iou_threshold=0.5)
true_positives, pred_scores, pred_labels = [torch.cat(x, 0) for x in list(zip(*sample_metrics))] # 배치가 전부 합쳐짐
precision, recall, AP, f1, ap_class = utils.ap_per_class(true_positives, pred_scores, pred_labels, torch.tensor(labels))
mAP = torch.mean(AP)
print(f'mAP : {mAP}')
print(f'AP : {AP}')
mAP : 0.7182363990382057
AP : tensor([0.8694, 0.9189, 0.3664], dtype=torch.float64)
AP值仅针对实际的3个类别（不包括背景类别）显示。尽管只训练了10次，但可以看到与第4章的RetinaNet结果相比有所改进。特别是对于第1类（戴口罩的对象），其准确度达到了0.9189 AP，对于第2类（未正确佩戴口罩的对象），也达到了0.3664 AP。
一般认为，尽管RetinaNet是使用FPN和Focal loss的单阶段方法，但它仍具有较高的性能。当然，通过超参数调整也可以优化RetinaNet的性能，但根据目前的实验结果，Faster-RCNN在这个数据集上表现出了更好的性能。
以上就是医疗用口罩检测教程的全部内容。通过这次教程，我们从数据集预处理到模型训练和预测都进行了实践。为了获得更好的性能，还可以尝试增加训练次数或进行超参数调整。希望大家能够自由地将对象检测模型应用到自己想要的数据中。
